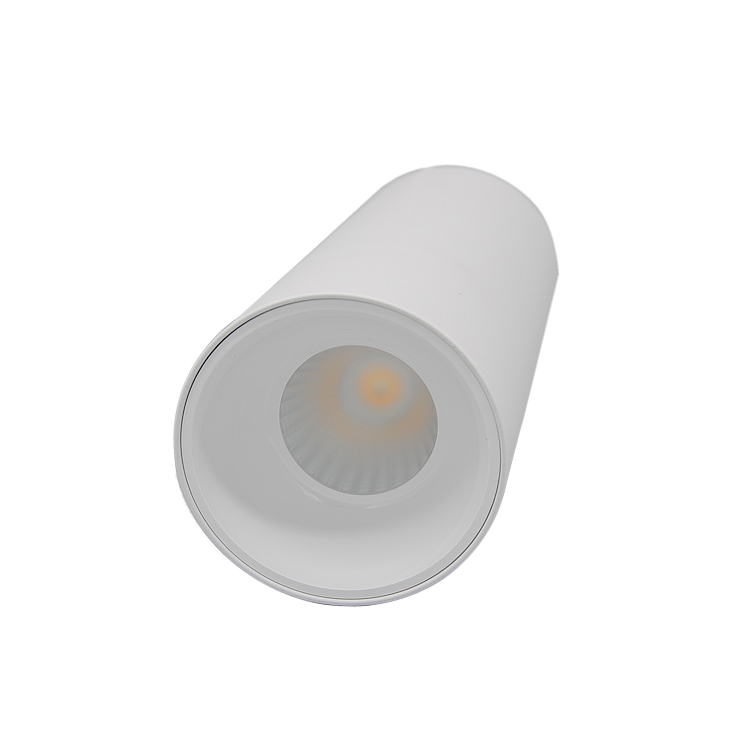

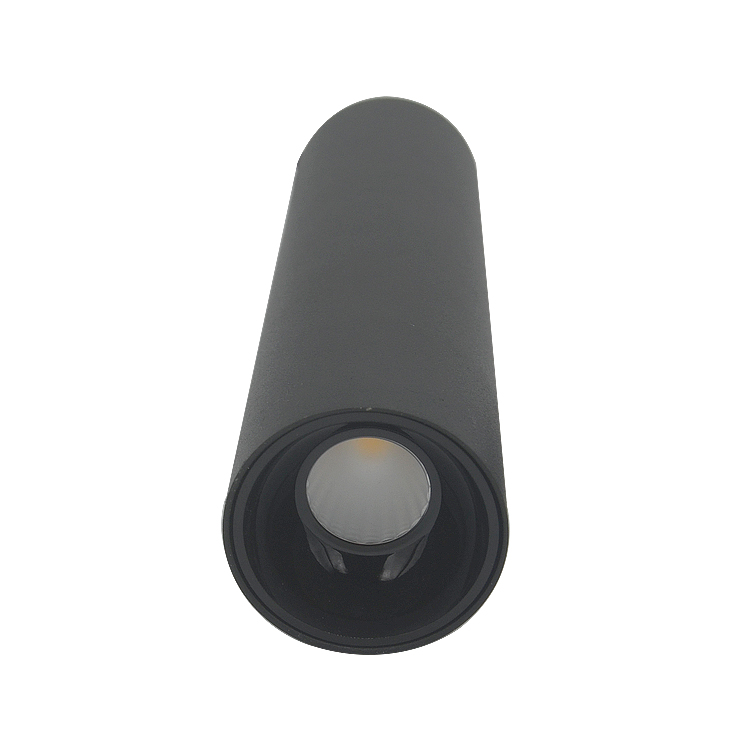

24V Tunable white / RGBW LED Cylinder Downlights
Item No.: BNL-SP08CW-PDT10
Category: DC 24V Smart Home LED Lights
Surface mounted / hanging 24V LED Pendant Downlight for Smart Home Automation Lighting, slim aluminum housing, uniform COB LED light source, high lumen and low power consumption, different models for optional.
Category: DC 24V Smart Home LED Lights
Surface mounted / hanging 24V LED Pendant Downlight for Smart Home Automation Lighting, slim aluminum housing, uniform COB LED light source, high lumen and low power consumption, different models for optional.
Products Details
Download Data
Product Inquiry
24V Tunable white / RGBW LED Cylinder Downlights
Product Specification:
| Item No.: | BNL-SP08CW-PDT10 |
| Power: | 8W/12W/15W-25W |
| Voltage Input: | DC 24V |
| Size: | D53*H200mm/D72.5*H200mm |
| CCT: | RGBW/tunable white/any single lighting color |
| CRI: | Ra>90 (Ra>80 or Ra>95 is optional) |
| Lumen: | 90-100lm/W |
| Beam Angle: | 15°/30°/45° |
| Dimmable: | Optional |
| IP Grade: | IP20 |
| Lifespan: | 50,000 hours |
| Working Temperature: | -20C / 40C |
| Installing Way: | surface mount/ hanging pendant |
| Product Warranty: | 2 years |
| Materials: | die-cast aluminum alloy |
| Package: | neutral inner box+carton box |
| Remark: | standard hanging cable is 100cm |
| Certificate: | CE, RoHS |
Home Automation Low Voltage 24V LED Pandent Downlight Compatible with:
KNX or Dali Dimmer
or PWM Loxone Dimmable
or DMX512 Controller
or 0-10/1-10V dimmable driver
